Ultra high power graphite electrode
Graphite has high thermal conductivity and is very resistant to heat and impact. It also has low electrical resistance, which means it can conduct the large electrical currents needed to melt iron.
Products DETAILS

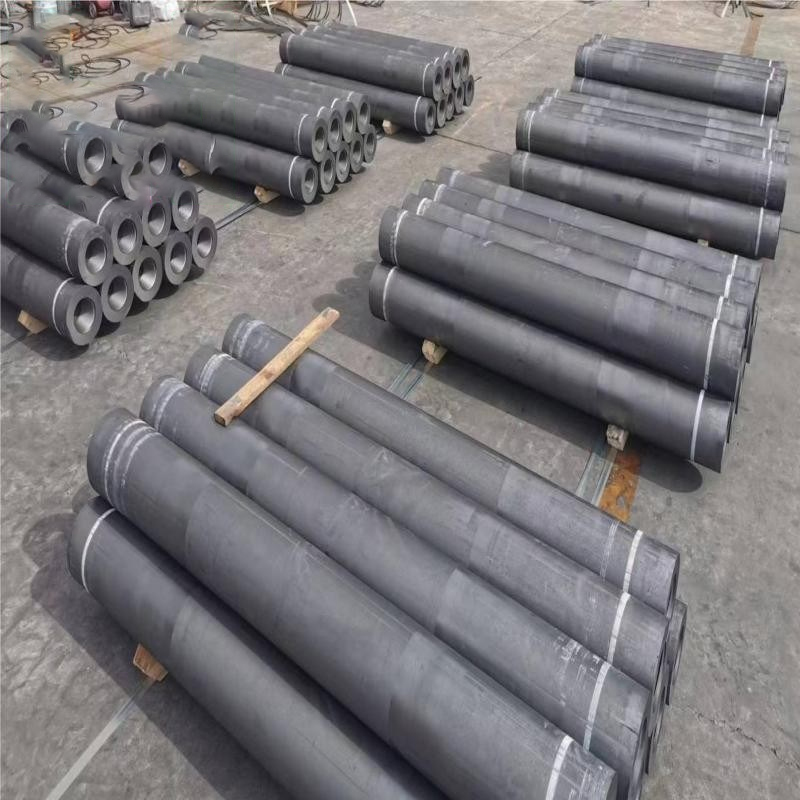

Ultra high power graphite electrode
|
Item
|
Value
|
|
Place of Origin
|
China
|
|
Brand Name
|
monband
|
|
Type
|
Electrode Block
|
|
Application
|
Metallurgical Industry
|
|
Length
|
2000mm-2700mm
|
|
Resistance (μΩ.m)
|
4.0-8.8
|
|
Apparent Density (g/cm³ )
|
1.55-1.82
|
|
Thermal Expansion
|
1.1-2.6, 1.1-1.4
|
|
Flexural Strength (N/m2)
|
≥8Mpa
|
|
Product Name
|
UHP Grade Graphite Electrode
|
|
Raw Material
|
Petroleum Coke
|
|
Color
|
Black
|
|

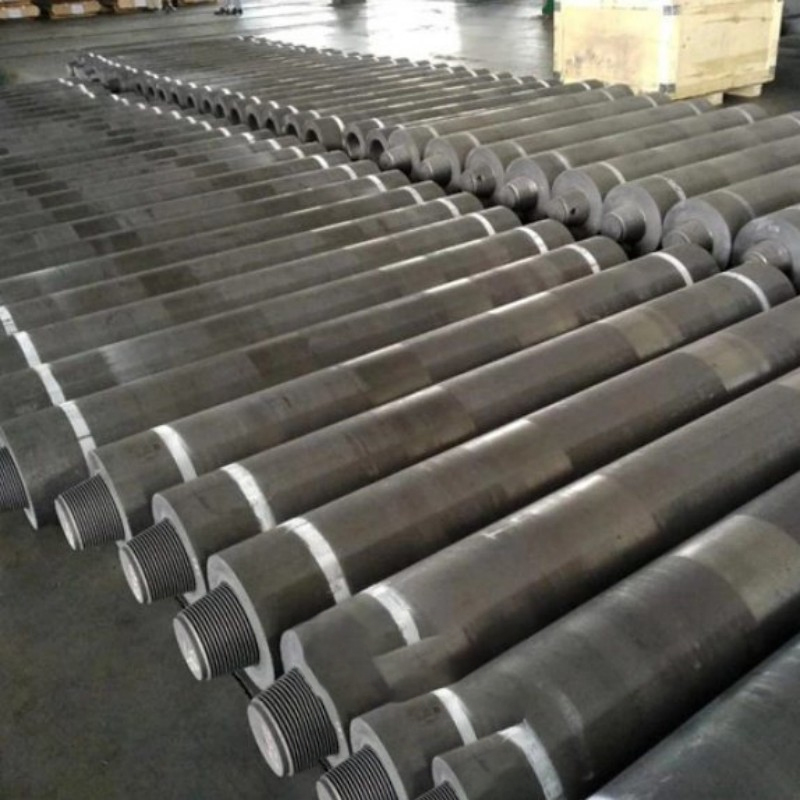

Nipple
|
3TPI/4TPI/4TPIL
|
|
Applicattion
|
Smelting Steel
|
|
MOQ
|
20 Ton
|
|
Resistance
|
4.8 to 5.8 microns
|
|
Apparent Density
|
1.68-1.75
|
|
Flexural Strength
|
10-14mpa
|
|

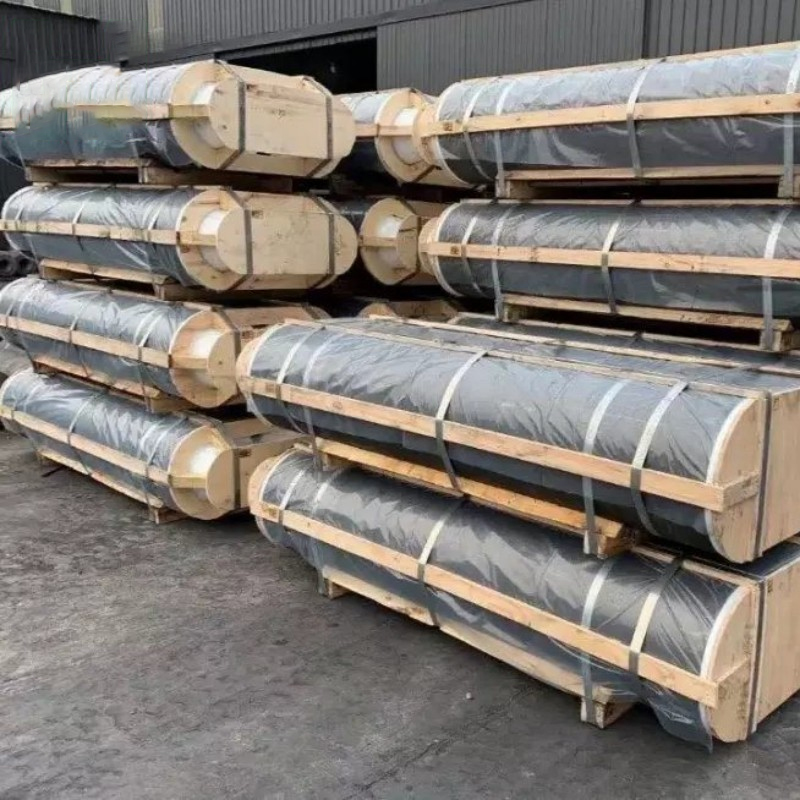

Packing
|
Wooden Cases
|
Graphite electrodes are mainly used in electric arc furnace. They are presently the only products available that have the high levels of electrical conductivity and the capability of sustaining the extremely high levels of heat generated in EAF. Graphite electrodes are also used to refine steel in ladle furnaces and in other smelting processes. Graphite electrodes are divided into 4 Types: RP Graphite electrodes, HP Graphite electrodes, SHP Graphite electrodes, UHP Graphite electrodes.
Graphite electrode is nothing more than a sharp graphite rod, taken from a pile, subject to a support conductor of the current, copper tube, and at a reasonable distance a plastic handle, PVC tube. The handle should be far enough away so that it does not reach so much heat to soften it. Anyway it is clear that PVC is the worst plastic that can be used for this but it was there.
